SPECEIFICATION AND FUNCTION
Guage：6、7、8、10、12、14
Knitting WIDTH：48INCH（122CM）、、52INCH（132CM）、56INCH（142CM
MAX WEAVINT SPEED：1.2M/S，DIFFERENT GAUGE AND WEAVE CONDITION MAKE THE SPEED DIFFERENT
RACKING：CONTROLLED BY SERVO MOTOR。CAN MOVE IN TWO INCHES，RECK YP TO1/4.1/2NEEDLE IN ANY PLACE
NEEDLE SELECTION：TAKE SPECIAL ELECTRIC MAGNET TO SEKECT FREELY
THE KNITTING SYSTEM IS SINGLE MACHINE HEAD，TWO SYSTEMS
ROLLER
- THE ROLLER DEVICE IS CONTROLLED BY TORQUE MOTOR
- MAIN ROLLER AND SUB ROLLER CAN OPEN AND CLOSE AUTOMATICNLLY.
- IT HAS 12 PIECES FLANK TENSION IS EACH RIGHT AND LEFT SIDE.
- IT AUTOMATIC STOPS WHEN YARN BREAKING，KNOT YARN YP，REVERSE ROLLING，SHOCK ACT
- CAN ALARM AUTOMATICALLY
CONTROLLING SYSTEM
- THE DATE IS INPUTTED BY FLASH DISC
- TAKE THE LCD DISPLAY。THE MEMORY IS 4M，CAN SAVE A LOT OF FILES AT THE SAME TIME
SPECIL FUNTION
- BEFORE KNITTING，CAN FIX FEEDER AUTOMATCALLY
- VOLTAGE：220V+/-10%
Function
Knitting, tucking float, transfer or composition. System supports three kinds of transferring: front transfer to rear, rear transfer to front, or transfer each other.
Applicable stitch
Cable,transfer,pick-up,flat narrowing, single-faced jacquard with or without dotted-line stitch,double-faced jacquard (max 6 colors in one row) engraved pattern, and intarsia stitches and so on.
|

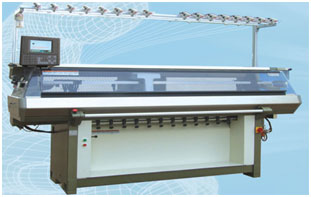

Flat Knitting Machine
